| 45.5 | 25 | 21 | 31.5 | INCH |
| 116 | 64 | 53 | 80 | CM |

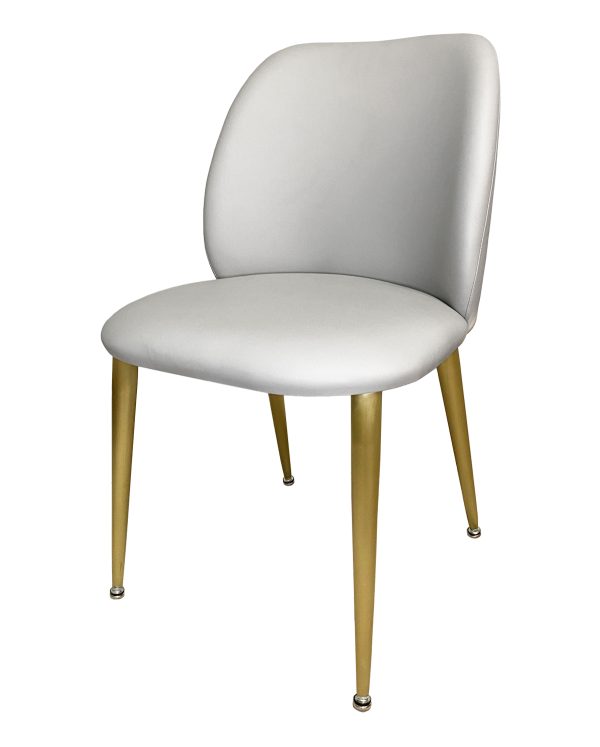

1880-TMLG Baza Bar
Tapered Metal Legs
Dimensions
 |
 |
 |
 |
|
|---|---|---|---|---|
| 45.5 | 25 | 21 | 31.5 | INCH |
| 116 | 64 | 53 | 80 | CM |
Upholstery
| COM | 1.75 | Yards |
| COL | 31.5 | Sq. Ft. |
Specifications
- The back to be constructed from ½” thick formed solid core plywood.
- The seat to be ¾” thick solid core plywood.
- Foam applied on chair is high density CAL 117. Foam is 1 ½” thick, 2.5 lbs. on the seat; 1” thick, 1.9 lbs. on the inside back and 1 ½” thick, 1.5 lbs. on the outside back.
- Seat and back of the chair are upholstered separately and mechanically assembled to the frame.
- Seat and back are connected together using steel fabricated connector brackets.
- Available with the following bases:
Straight Metal Leg (SMLG) – Manufactured using Ø16 mm steel tubing. Available in any standard ISA powder coat and plated finish.
Slim Tapered Metal Leg (STLG) – Manufactured using Ø16 mm steel tubing. Available in any standard ISA powder coat and plated finish.
Tapered Metal Leg (TMLG) – Manufactured using Ø38 mm, 16 gauge steel tube. Leg is Ø38 mm at the top and tapers down to Ø16 mm. Available in any standard ISA powder coat finish and P77 Polished Chrome.
Cone Base (CNB) – Manufactured using Ø38 mm, 16 gauge steel tube. Leg is Ø38 mm at the top and tapers down to Ø16 mm. Includes a 19” DIA foot ring. Available in any standard ISA powder coat finish and P77 Polished Chrome.
Tapered Wood Leg (TWLG) – Made of solid Ash. Leg is Ø38 mm at the top tapering down to Ø25 mm. Available in any standard ISA wood finish.
Disc Base (DB) – Frame starts with a bottom ½” solid metal plate and covered with a round 16 gauge furniture grade cover. The column is 3” diameter 14 gauge metal with metal top mounting plate plates have adjustable glides in them to allow leveling on uneven floors.
Wood Swivel Base (WSB) – Frame to be constructed from solid maple. Lumber to be dried to a final moisture content level between 6% – 8%. Legs to be constructed from single stock lumber. Finished dimension at the top of leg to be 2 ½” x 1 1 ¼” tapering to 1 ¼” x 1 ¼” at bottom. Available in any standard ISA wood finish. - Also available in counter height (24” seat height), upon request.
- Push-in glides will be used with available options in metal or polyethylene.
Finishes
POWDER COAT METAL FINISHES
P39 White Lacquered
P80 Metallic Silver
P90 Magnum Steel
P25 Burnished
P50 Sungold
P61 Bronze
P38 Black
P58 Black Textured
P37 Matte Black
PLATED METAL FINISHES
P77 Polished Chrome
P60 Satin Chrome
P40 Satin Nickel
P70 Satin Brass
P75 Antique Brass
Finishes presented on screen may vary and are close representations only. Contact us here to request for finish samples.
Full Collection
-
45.5 25 21 31.5 INCH 116 64 53 80 CM -
45.5 25 21 31.5 INCH 116 64 53 80 CM -
31/35 25 21 18/22 INCH 79/89 64 53 46/56 CM -
33 25 21 INCH 84 64 53 CM -
33 25 21 INCH 84 64 53 CM -
33 25 21 INCH 84 64 53 CM -
44.5 25 21 29.5 INCH 112 64 53 75 CM -
35.5/42.5 27 27 21/28 INCH 90/108 69 69 53/71 CM -
44.5 25 21 29.5 INCH 112 64 53 75 CM -
33 25 21 INCH 84 64 52 CM -
34 25 21 INCH 86 64 53 CM -
45.5 25 21 31.5 INCH 116 64 53 80 CM
Comments
Standard with fully upholstered seat.
Wood: Any standard wood finish. / Metal: Any standard powder coat finish.
Cone base (CNE) comes standard with swivel; no return swivel (increases seat height by 1″).
Available in 24″ seat height.
