| 40 | 21 | 25 | 30 | INCH |
| 102 | 53 | 64 | 76 | CM |

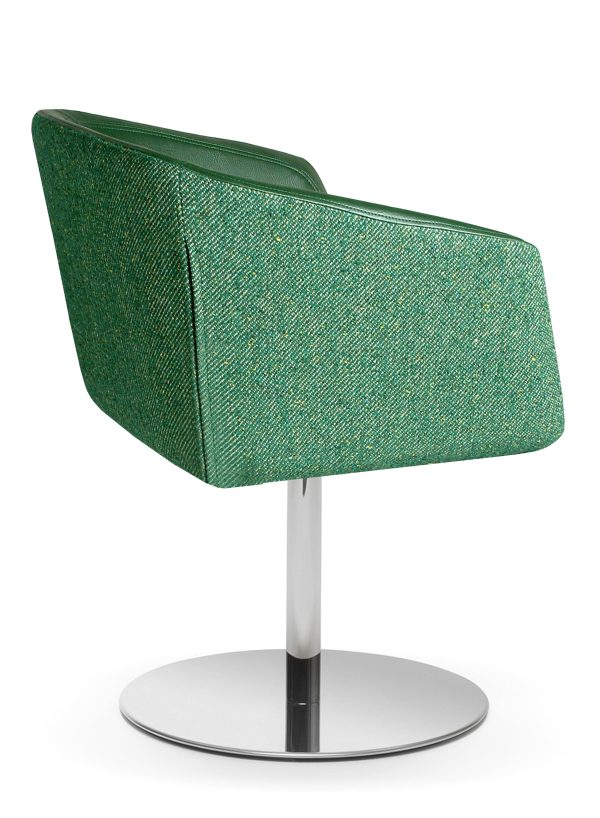

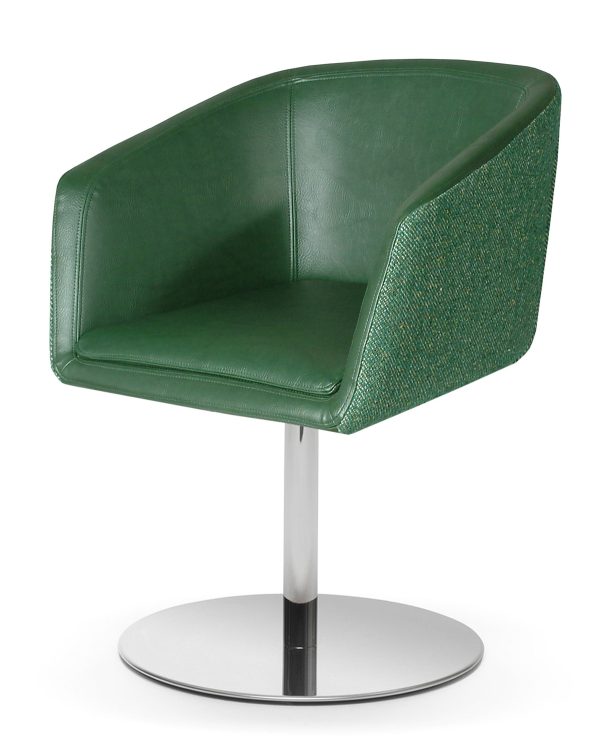

1942-DB Eclipse Arm
Disc Swivel Base
Dimensions
 |
 |
 |
 |
|
|---|---|---|---|---|
| 40 | 21 | 25 | 30 | INCH |
| 102 | 53 | 64 | 76 | CM |
Upholstery
| COM | 2.25 | Yards |
| COL | 40.5 | Sq. Ft. |
Specifications
- Stool consists of a cold molded foam shell, which is made from a metal frame injected with PU foam.
- Shell seat is wrapped in ¼” high density CAL 117 FR foam. Shell back and sides are wrapped in Dacron and upholstered, as per specifications.
- Wood Swivel Base frame is constructed from solid maple. Lumber is dried to a final moisture content level between 6% – 8%.
- Wood legs are constructed from single stock lumber. Finished dimension at the top of leg to be 2 ½” x 1 1 ¼” tapering to 1 ¼” x 1 ¼” at bottom. Legs feature a metal tube footrest, screwed onto the outside of the frame.
- Foot ring available in the following finishes: P38 Black (standard) P60 Satin Chrome P70 Satin Brass.
- Disc base frame starts with a bottom ½” solid metal plate, covered with a round 16 gauge furniture grade steel cover. The column is 3” diameter 14 ga metal with metal top mounting plate.
- The metal disc (DB) frame is available in any ISA standard powder coat or plated metal options, at an upcharge.
- Both styles include nylon glides suitable for all floorings. The glides are adjustable on the Disc Base style.
- Barstools are also available in Counter height (24” seat height).
Finishes
POWDER COAT METAL FINISHES
P39 White Lacquered
P80 Metallic Silver
P90 Magnum Steel
P25 Burnished
P50 Sungold
P61 Bronze
P38 Black
P58 Black Textured
P37 Matte Black
PLATED METAL FINISHES
P77 Polished Chrome
P60 Satin Chrome
P40 Satin Nickel
P70 Satin Brass
P75 Antique Brass
Finishes presented on screen may vary and are close representations only. Contact us here to request for finish samples.
Pre-Approved Textiles
The listing below provides a wide range of textiles that have been approved for use on most ISA seating products.
Click here for a list of products that require textile approval.
Some exclusions may apply and will be noted. Textiles that have not been reviewed will require a memo sample to be submitted to ISA for testing. Please fill out our Upholstery Approval Form and submit to ISA in order to track your memo and provide a written correspondence following review. ISA welcomes customers to provide COM or alternatively we are pleased to quote any upholstery material upon request.
Full Collection
-
40 21 25 30 INCH 102 53 64 76 CM -
30.5 21.5 24.5 INCH 77 54 62 CM -
30.5/33.5 27 27 23.5/27 INCH 77/85 69 69 60/69 CM Adjustable Height
- Overall Height: 30.5”~ 33.5”
- Arm Height: 23.5”~ 27″
-
30.5 21.5 24.5 INCH 77 54 62 CM -
30.5 21.5 24.5 INCH 77 54 62 CM
Comments
Disc base comes standard with swivel.
Available in 24″ seat height.
See #942 for matching chair.
Textiles that have not been reviewed will require a memo sample. Memo samples can be ordered and sent to ISA directly from the manufacturer’s website. An Upholstery Approval Form must be filled out and submitted to ISA along with memo sample.
