18″ spread (each)
22″ spread (each)
30″ spread (each)

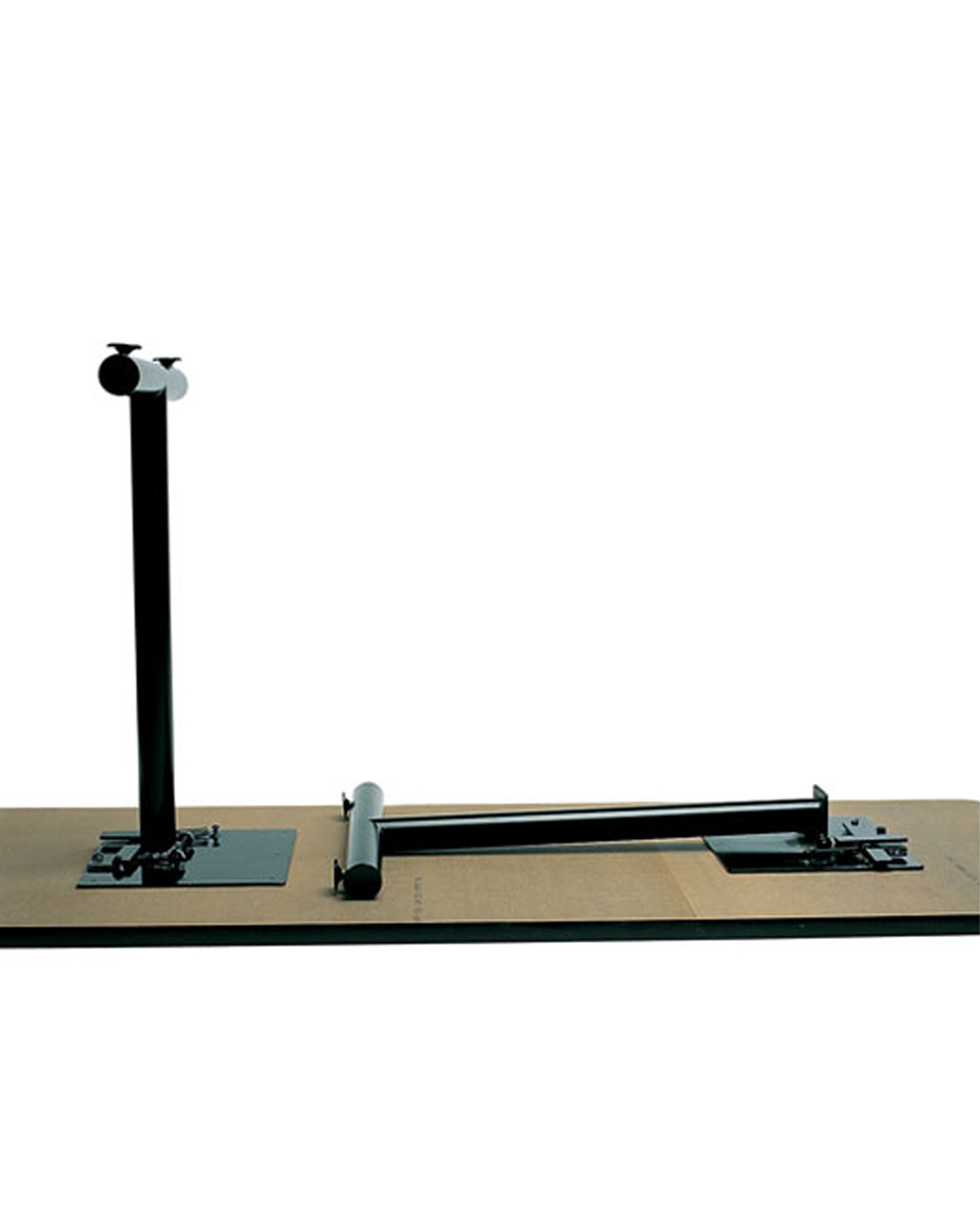

2300 Duplex ‘t’
Dimensions
18″ spread (each)
22″ spread (each)
30″ spread (each)
Specifications
- All bases start with a bottom cross style piece that is 14 gauge 2 ½”dia. tubing that is tapped. All cross pieces have adjustable glides to allow leveling on uneven floors.
- All columns are constructed from 16 gauge steel, 2 ½”dia. tubing. All components are welded and polished together.
- The mounting plate is 3/16” thick steel and welded to the vertical column. Mounting plates are 11” x 11” or 14” x 14” depending on table application and size.
- Base spread sizes and the tops that can be used with them are as follows: o 18” x 18”, for top 18”-24” o 22” X 22”, for top 24”-30” o 30” x 30”, for top 36”-48” *This base style is suitable with ADA tops that are no less than 30 x 42 in size.
- Available in custom heights upon request. Upcharges for customization apply.
- Available with top plate flip-mechanism upon request.
